Prototyping PCB boards for fine pitch ICs - with prototype area!

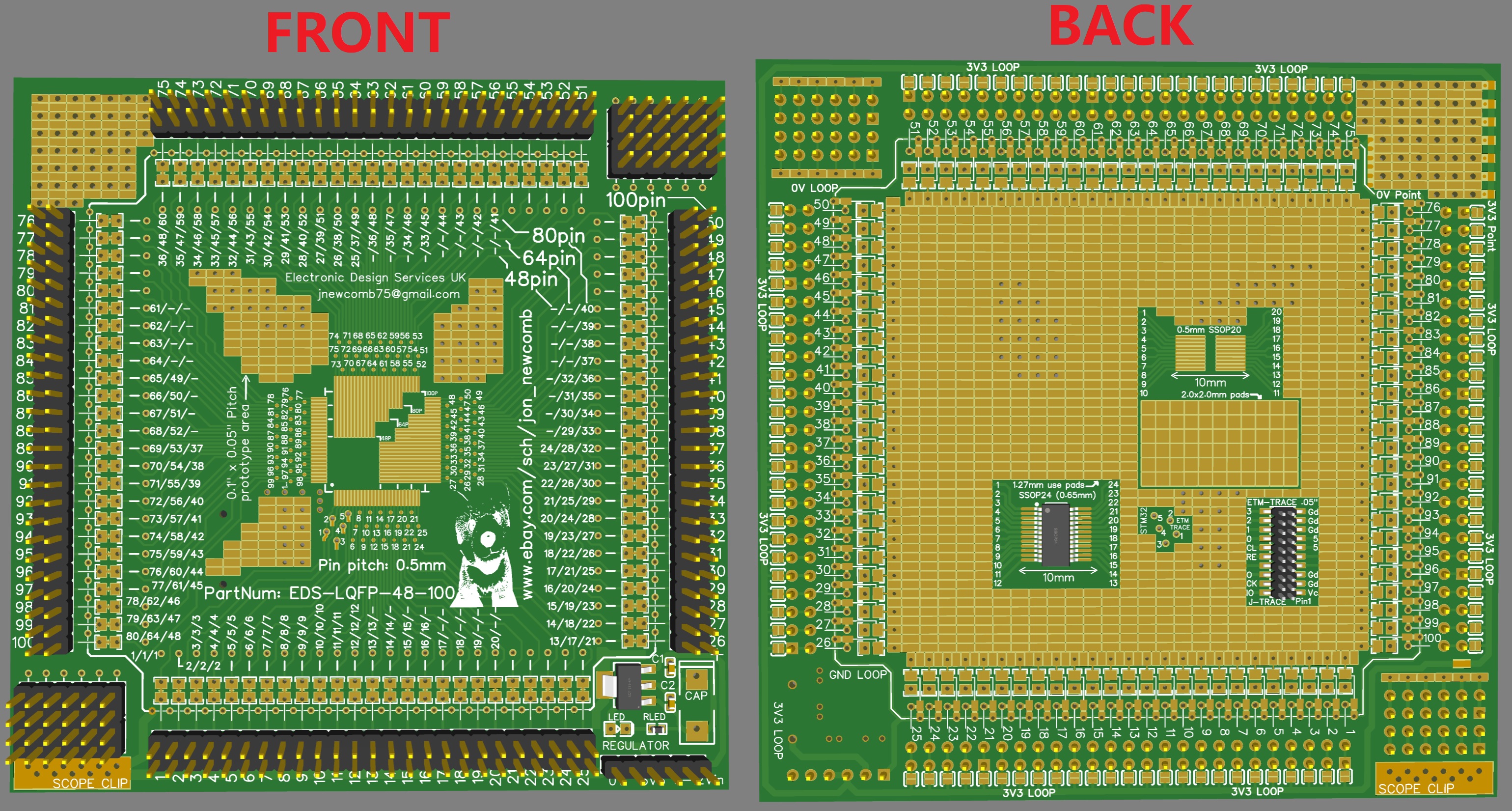

“Build your own application-specific microcontroller / FPGA mini-module module – includes sizable prototyping area for housekeeping, SMT and through-hole components”

Reviewed on EEVblog

And again here:

---

Tutorial and images can be found here:

https://www.elektroda.com/rtvforum/topic3853189.html

---

---

---

---

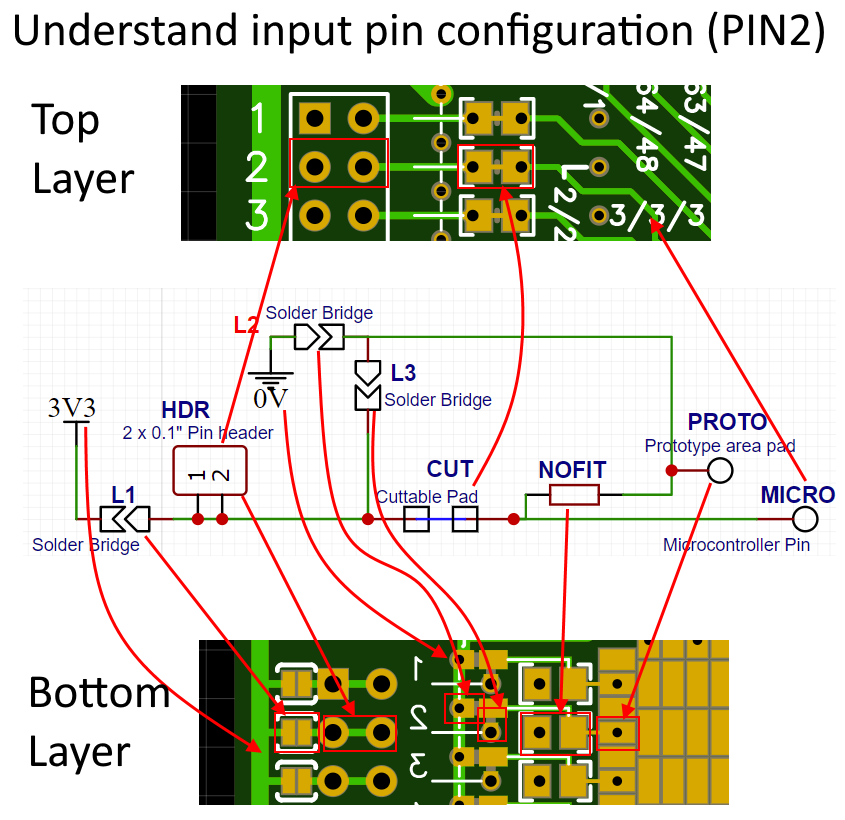

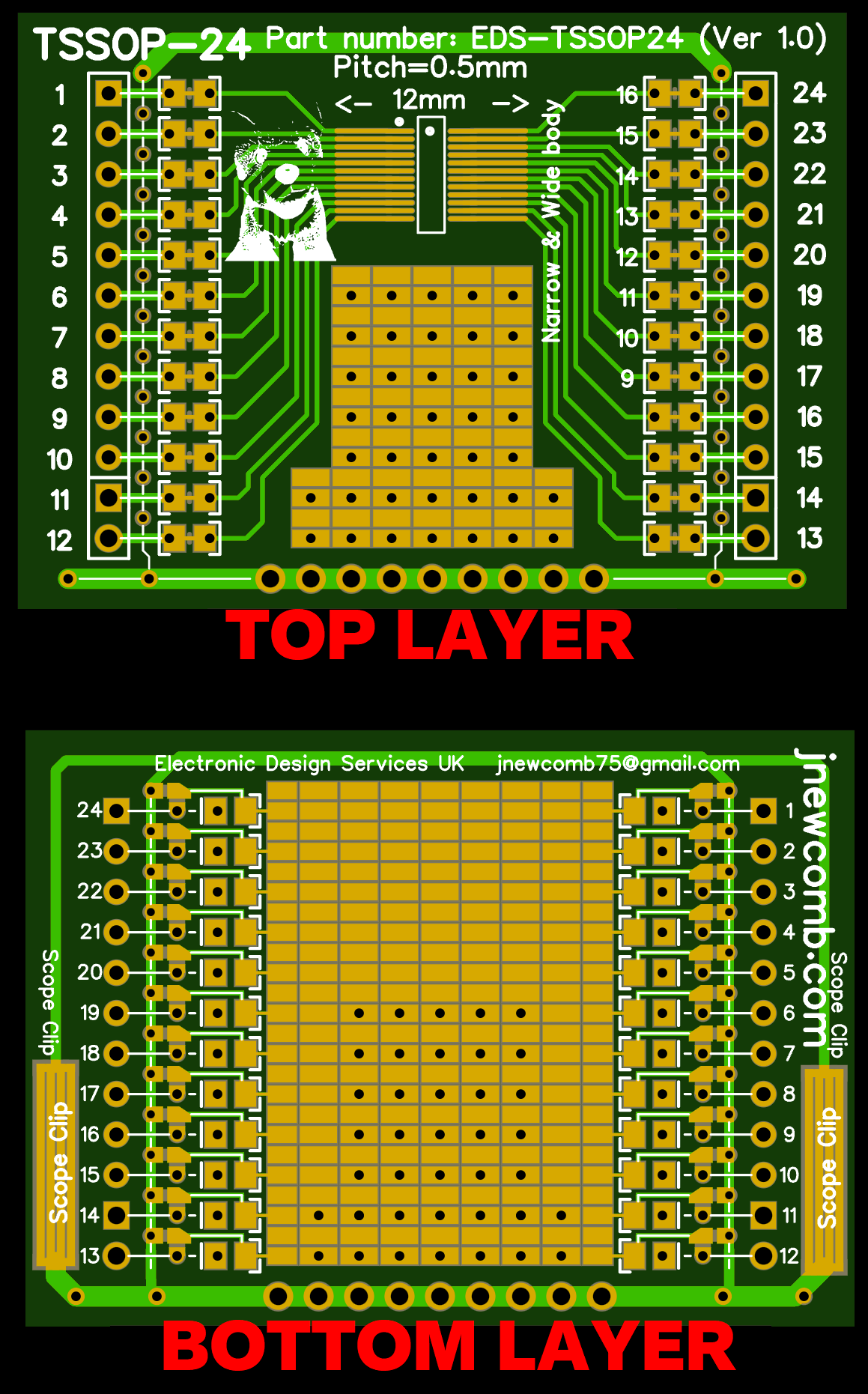

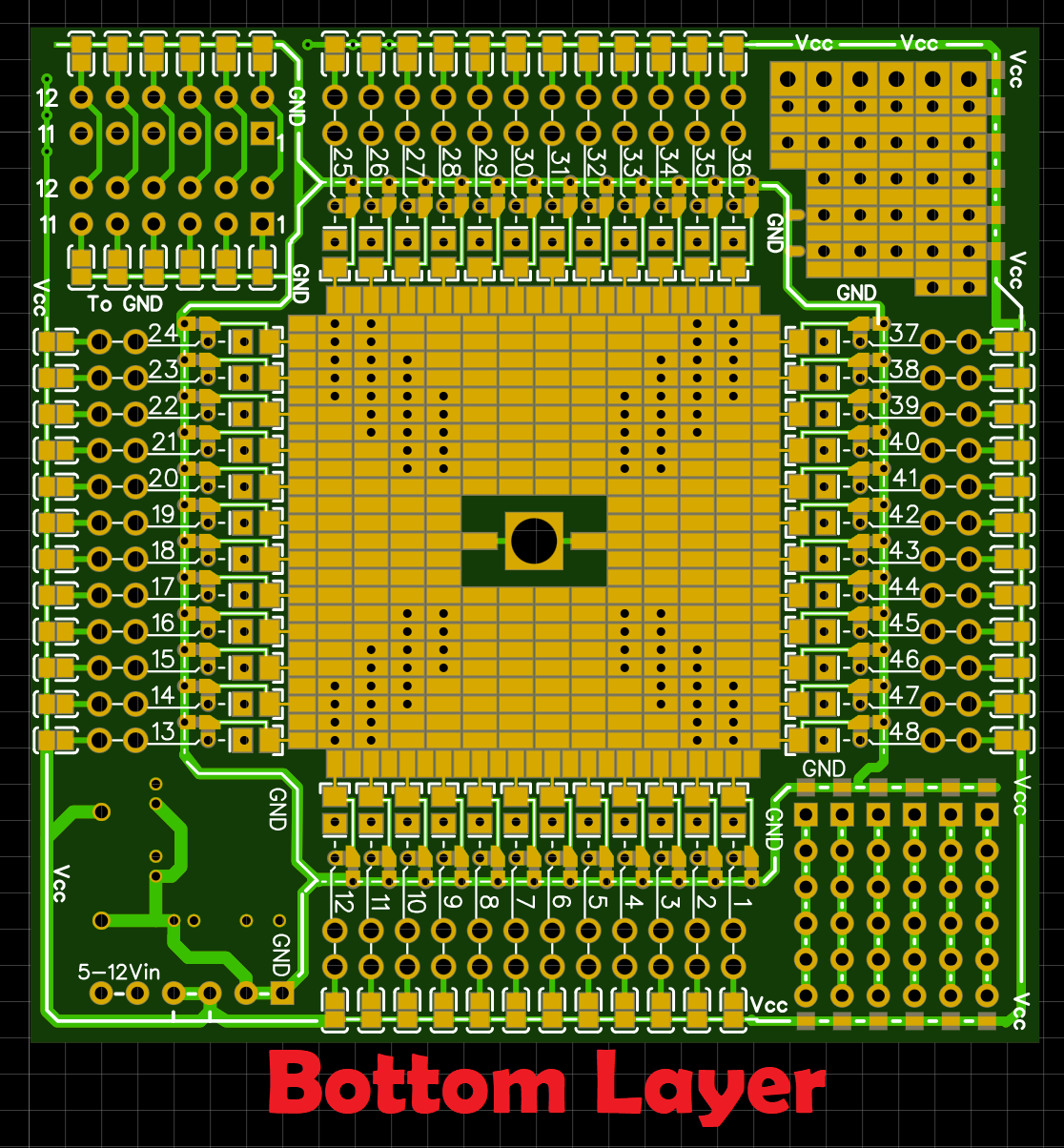

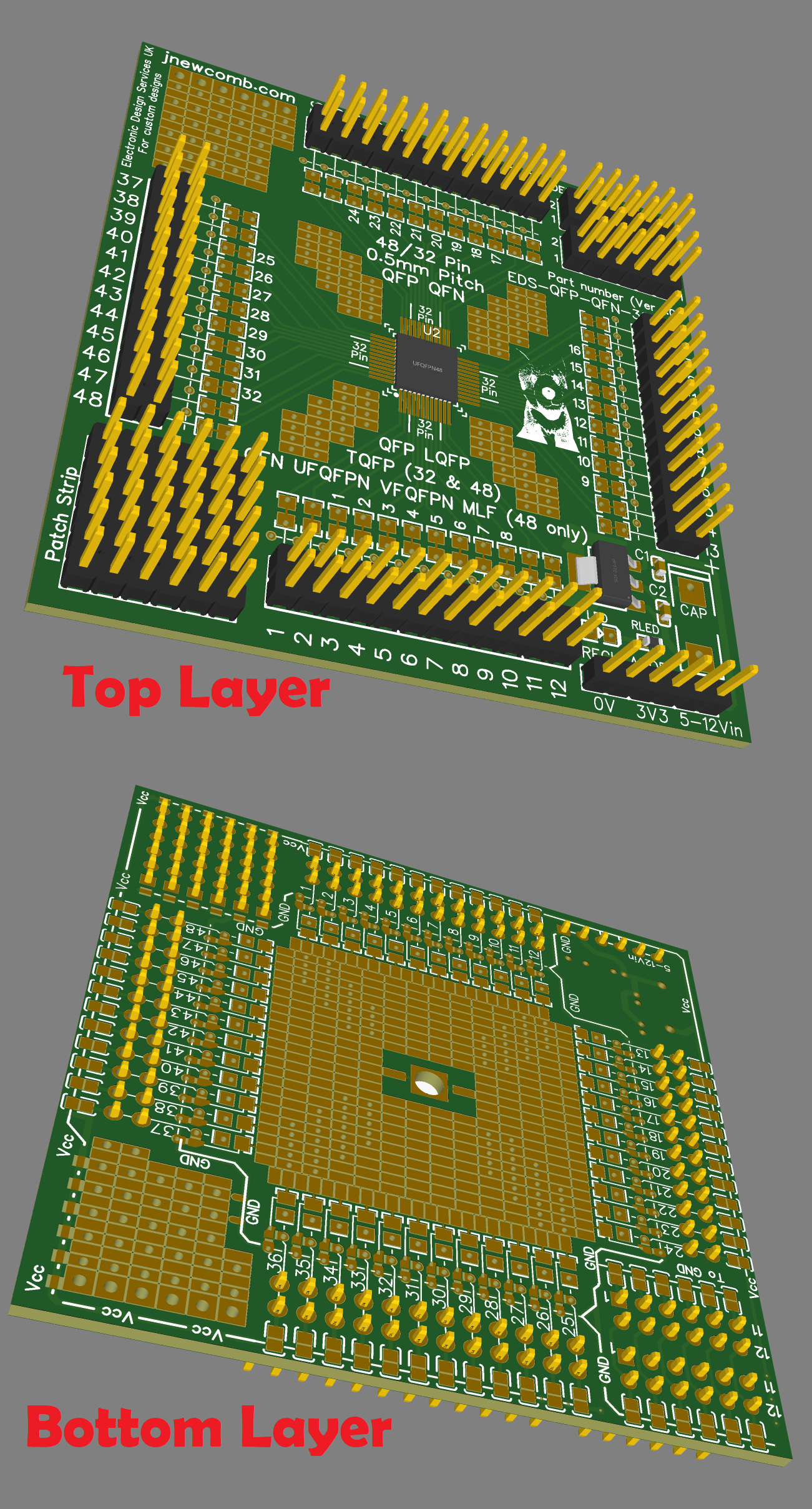

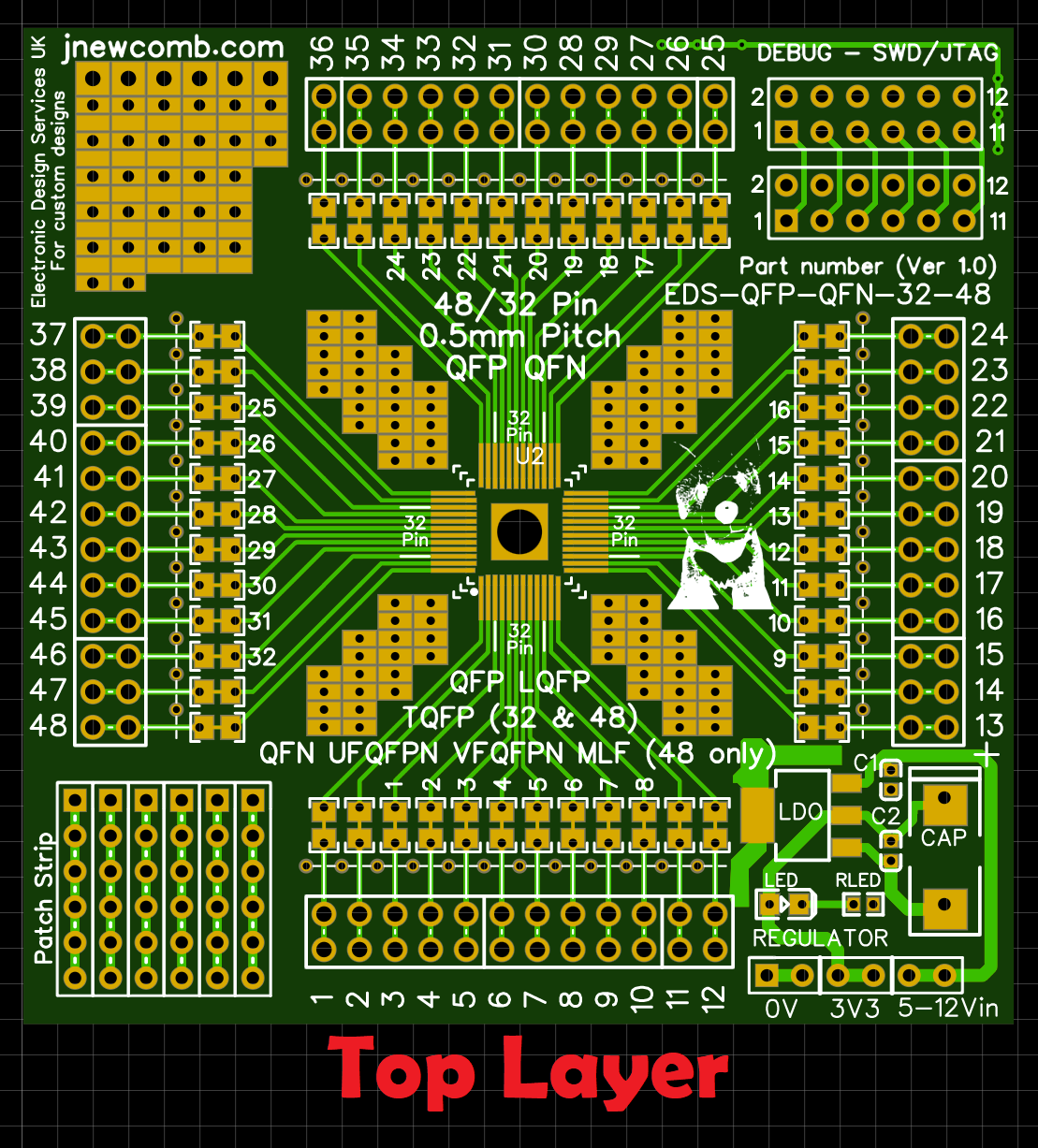

LQFP100,80,64,48 pin @ 0.5mm pitch

---

Case Study - 3 x SPI DACS (DAC8830)

Common SPI with separate chip select lines

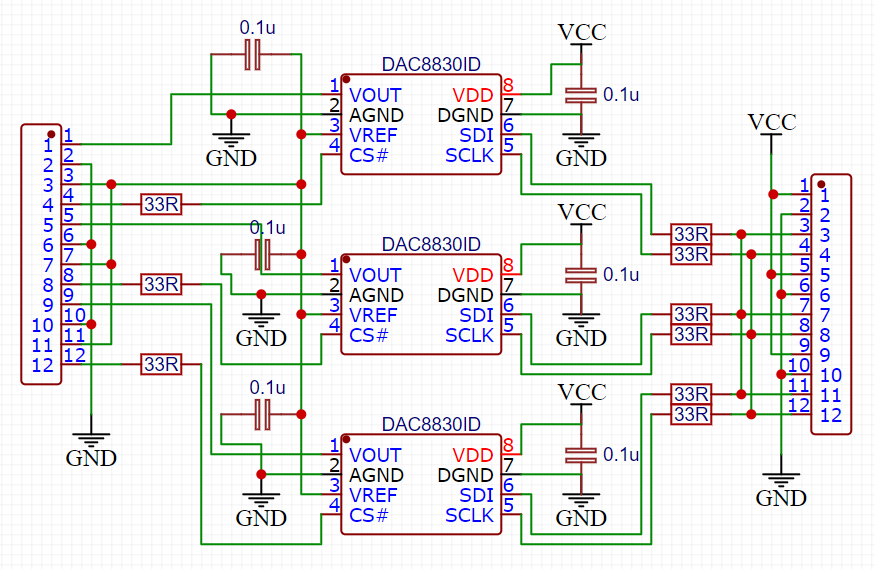

Schematic:

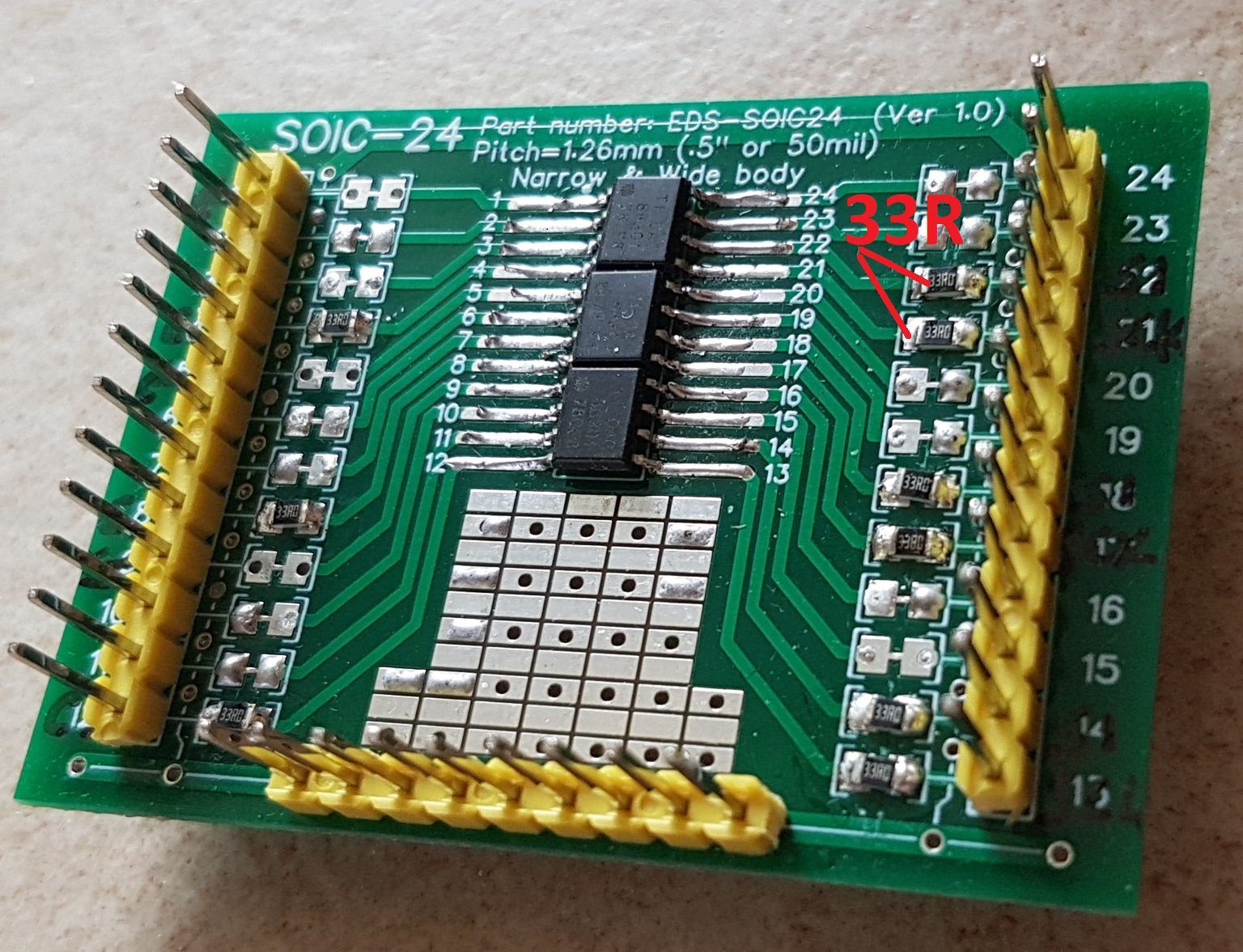

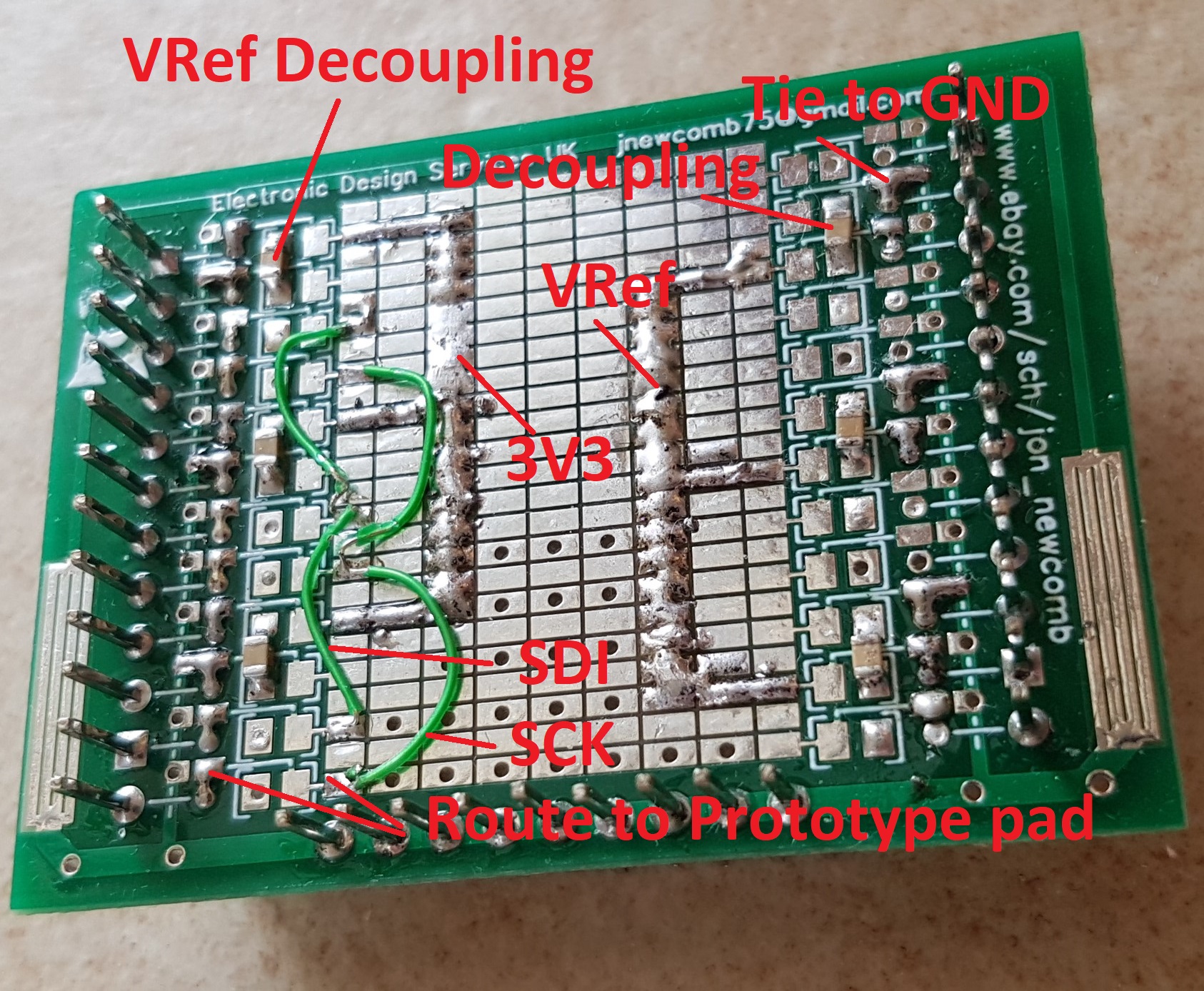

Implementation:

---
